CSL 301

Engineering IT offers expert advice and support for classroom and conference room technology, including advanced videoconferencing systems. The Engineering IT eLearning team manage the capture and distribution of recorded lectures and presentations for online and blended learning. The guide below provides details for all Engineering IT supported AV locations.

Need consultation or support?
Reach out to us at 217-333-1313 or engrit-help@illinois.edu.

Building: Coordinated Science Lab
Room: CSL 301
Room Owner Primary: CSL
Room Support Primary: EngrIT
Source Input: In-Room PC
Room Type: Seminar Room
Room Category: Administrative
Room Documentation:

Equipment:

  • Axis V5915 Camera
  • Axis V5915 Camera
  • Apple Apple TV Collaboration Device
  • Dell FY18 DRP Computer
  • Extron AAP 102 (HDMI, VGA A, USB-B, USB-Ax2) Connection Panel
  • Extron AAP 102 (SDIx2, Spkr, Cat6a) Connection Panel
  • Biamp TesiraFORTE CI DSP
  • Extron DTP HDMI 4K 230 Rx HDBaseT Reciever
  • Beyerdynamic MPR210 Microphone, Wired
  • Beyerdynamic Classis RM 30 Microphone, Wired
  • Beyerdynamic Classis RM 30 Microphone, Wired
  • Beyerdynamic MPR 210 Microphone, Wired
  • Extron XPA2001 Power Amp
  • EPSON Powerlte Pro G6750WU Projector
  • Extron MLC Plus 200 Push Button Control Panel
  • Blackmagic Design SDI to HDMI Mini Coverter SDI Converter
  • Blackmagic Design SDI to HDMI Mini Coverter SDI Converter
  • Extron SW2 USB USB Switcher
  • Epiphan AV.io Video Grabber
  • Extron SW2 HD 4K Video Switcher
  • Extron IN1608 Video Switcher

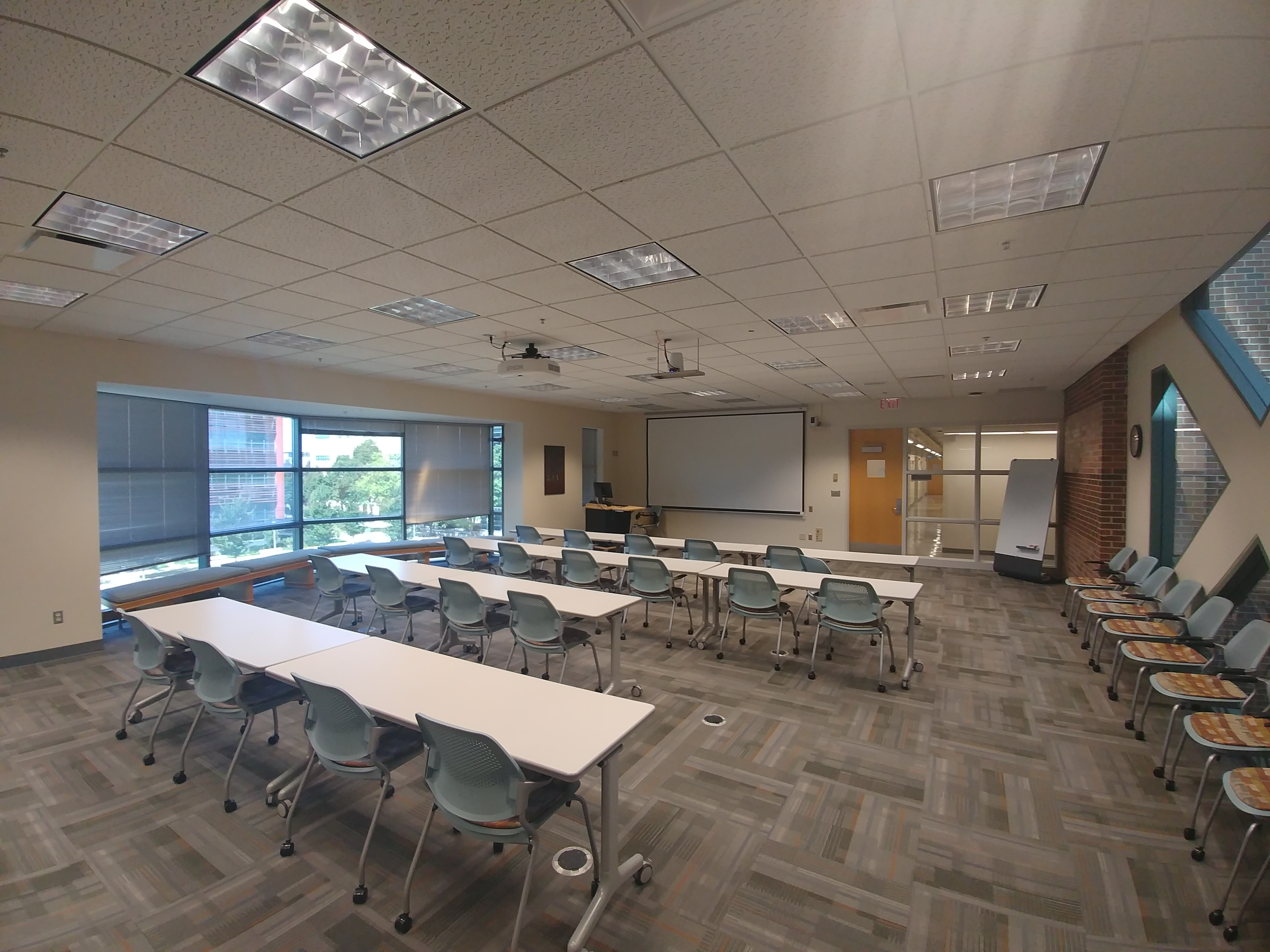

CSL 301_RoomFront

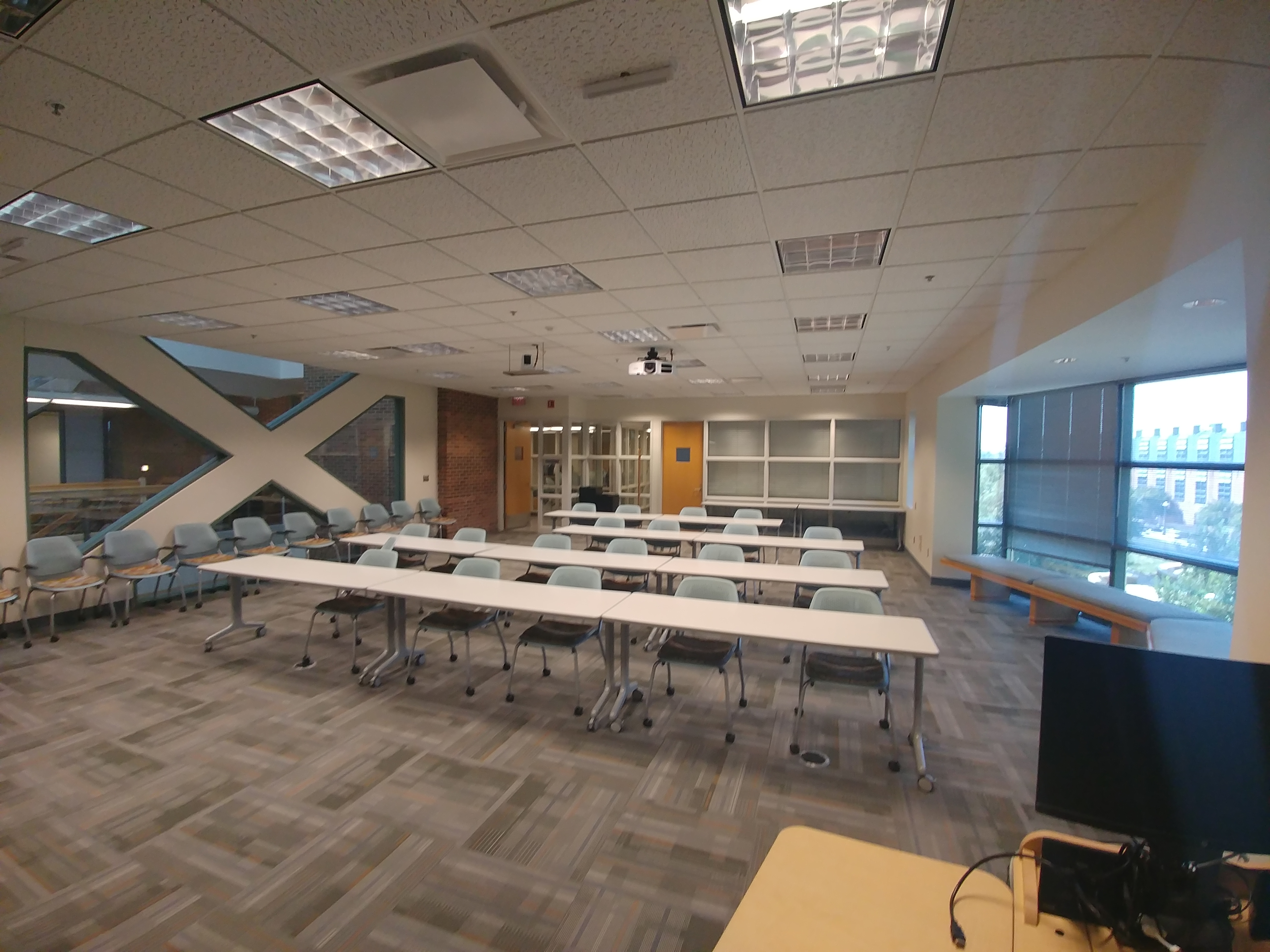

CSL 301_RoomRear

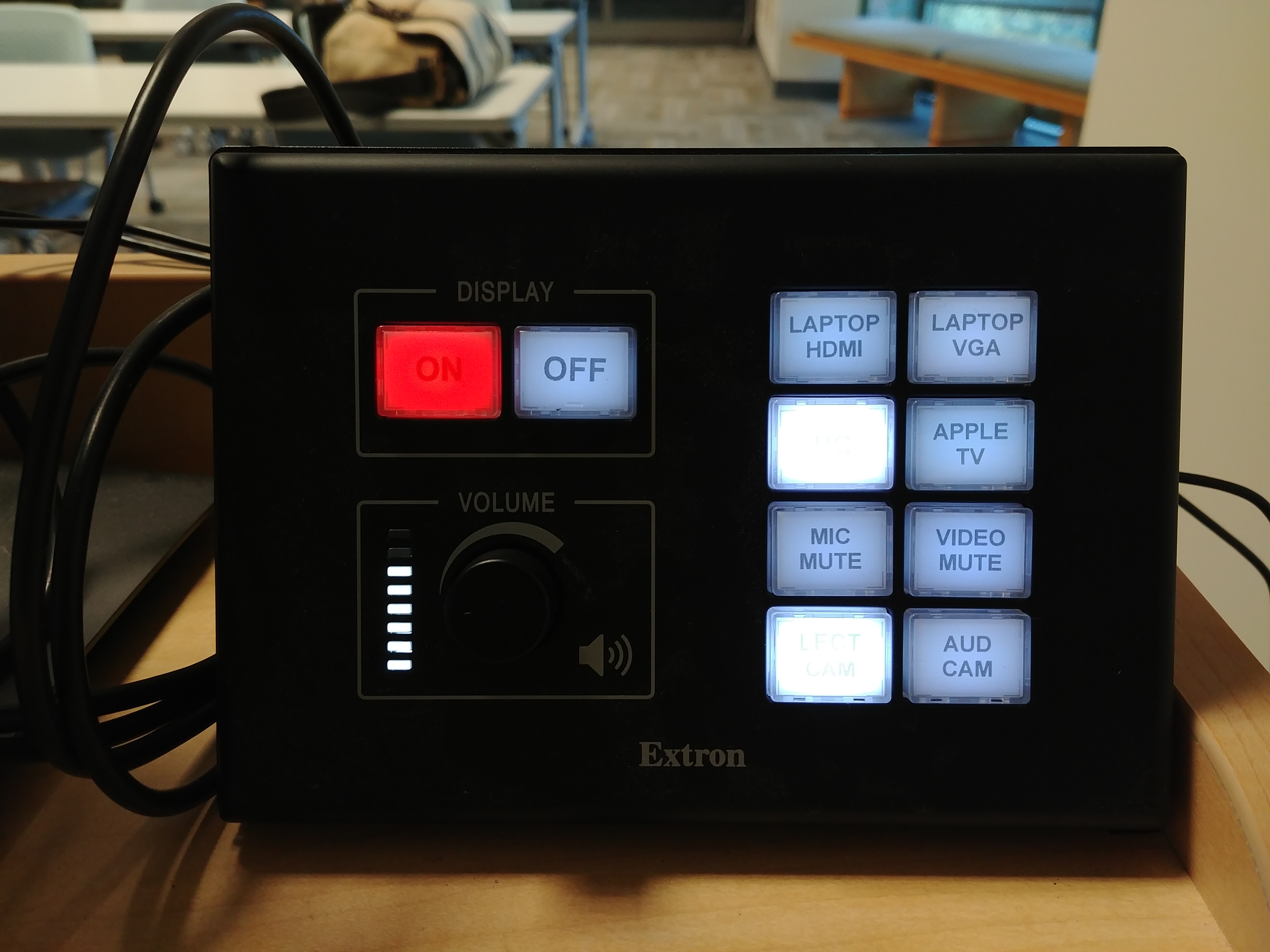

CSL 301_ControlPanel
