ECEB 2017

Engineering IT offers expert advice and support for classroom and conference room technology, including advanced videoconferencing systems. The Engineering IT eLearning team manage the capture and distribution of recorded lectures and presentations for online and blended learning. The guide below provides details for all Engineering IT supported AV locations.

Need consultation or support?
Reach out to us at 217-333-1313 or engrit-help@illinois.edu.

Building: Electrical and Computer Engineering Building
Room: ECEB 2017
Room Owner Primary: ECE
Room Support Primary: ECE
Source Input: In-Room PC
Room Type: Classroom - flexible seating
Room Category: Instructional
Room Documentation:

    Equipment:

    • Extron XPA 1002 2 Channel Amp
    • Extron LT-800-072-P1 Assistive Listening System
    • Extron 60-440-01 AV Distribution Amp
    • Extron 60-692-20 AV Distribution Amp
    • Extron 60-884-01 AV Distribution Amp
    • Extron 60-1481-01 AV Distribution Amp
    • AMX SVSi N4321 AVoverIP Audio Transceiver
    • AMX SVSi N2222A AVoverIP Receiver
    • AMX SVSi N2222A AVoverIP Receiver
    • AMX SVSi N2222A AVoverIP Receiver
    • AMX SVSi N2222A AVoverIP Receiver
    • AMX SVSi N2222A AVoverIP Receiver
    • AMX SVSi N2122A AVoverIP Transmitter
    • AMX SVSi N2122A AVoverIP Transmitter
    • AMX SVSi N2122A AVoverIP Transmitter
    • AMX SVSi N2122A AVoverIP Transmitter
    • AMX SVSi N2122A AVoverIP Transmitter
    • AMX SVSi N2122A AVoverIP Transmitter
    • AMX SVSi N2122A AVoverIP Transmitter
    • Axis V5915 Camera
    • Dell Precision 3431 Computer
    • Blackmagic Design BDLKWEBPTR Conference System
    • NEC EA224WMi-BK Confidence Monitor
    • Extron 60-1429-01 Control Processor
    • Samsung SDP-90060 Doc Cam
    • Biamp Forte AI DSP
    • AMX ABV-RX-MULTI-DXLINK HDBaseT Reciever
    • AMX ABV-RX-MULTI-DXLINK HDBaseT Reciever
    • AMX AVB-DWP-TX-MULTI-DXLINK HDBaseT Transmitter
    • AMX AVB-DWP-TX-MULTI-DXLINK HDBaseT Transmitter
    • Spectrum Furniture 55178-GTBKBA4D4000T Lectern
    • Shure ULXS4 Microphone Reciever
    • Shure ULXS4 Microphone Reciever
    • Shure ULX2 Microphone, Handheld
    • Shure ULX1-J1 Microphone, Lav
    • NetGear GS108LP Network Switch
    • NetGear JGS524 Network Switch
    • Extron 60-1361-01 POE Injector
    • Extron XPA 2001-70V Power Amp
    • Extron 60-1022-01 Power Supply
    • Extron 60-1022-01 Power Supply
    • Extron 60-1324-02 Presentation Recorder
    • NEC PA703UL Projector
    • NEC PA703UL Projector
    • Atlas Soundolier FAP62T Speakers
    • Community CS8 Speakers
    • Extron 60-1566-02 Touch Panel Controller
    • Tripplite SMART1500LCD UPS
    • Extron 60-1539-12 USB Extender
    • Extron 60-1539-13 USB Extender
    • Mersive Solstice UE Gen3 Pod Wireless Presenter

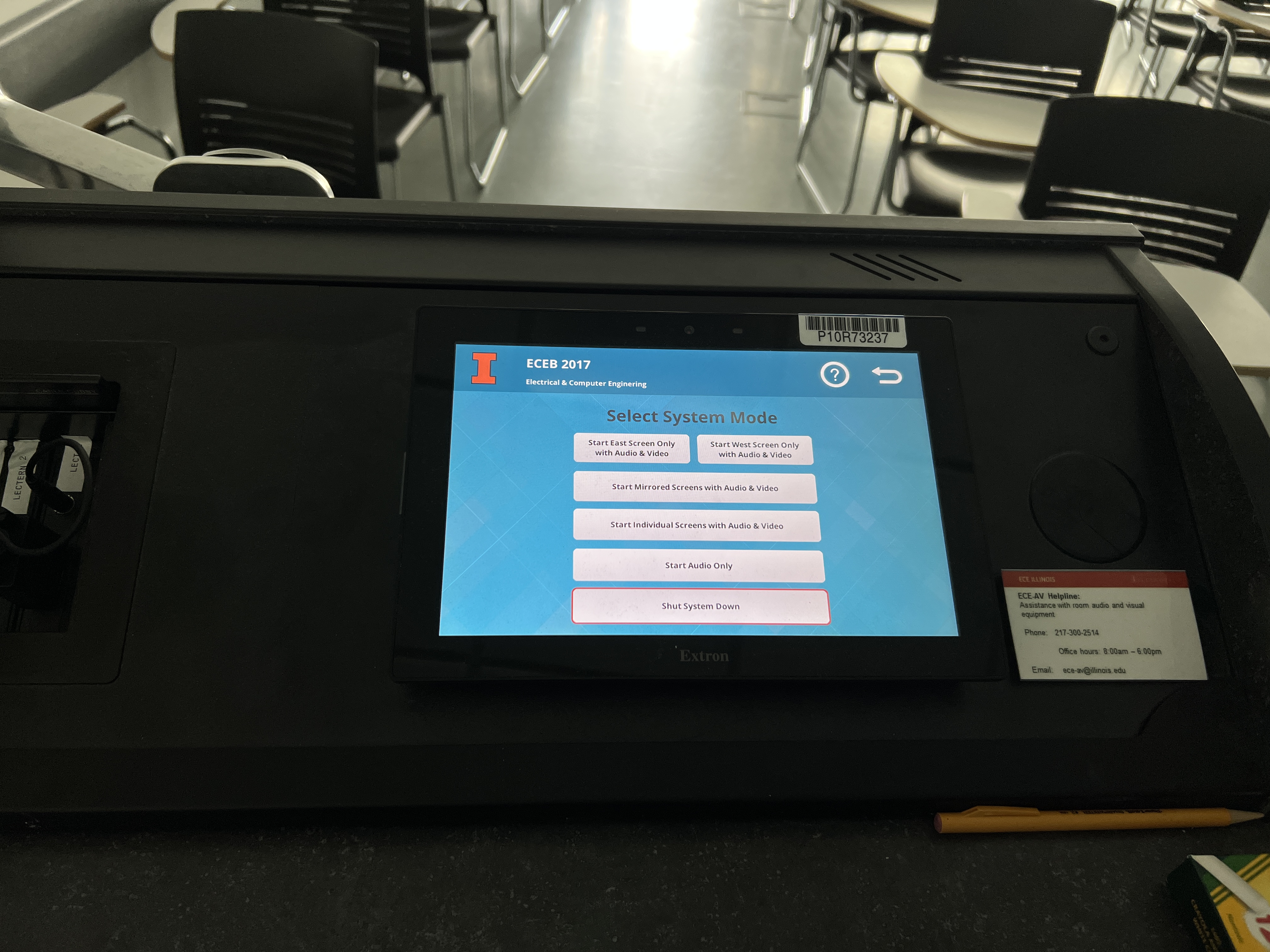

    ECEB 2017_ControlPanel

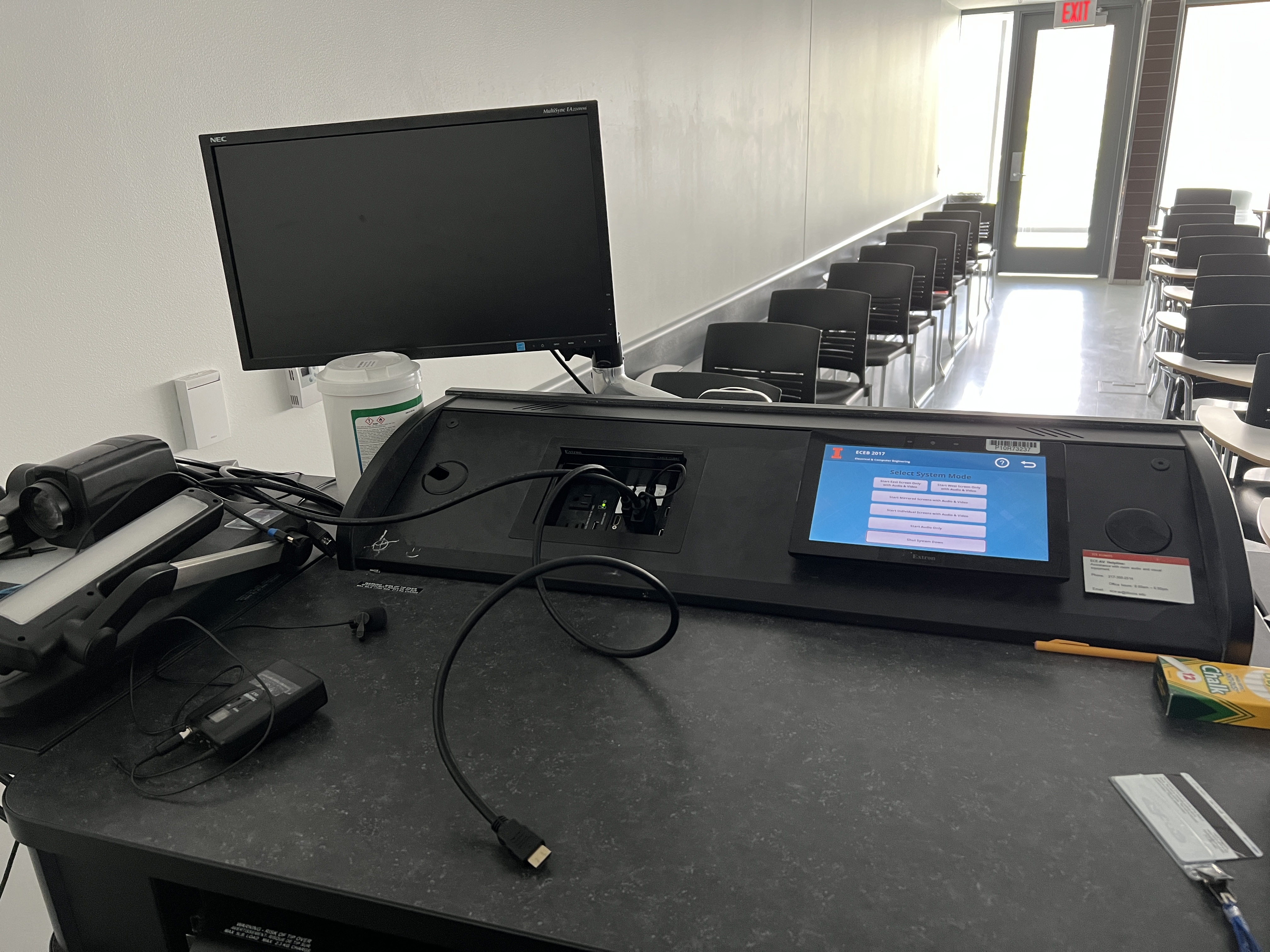

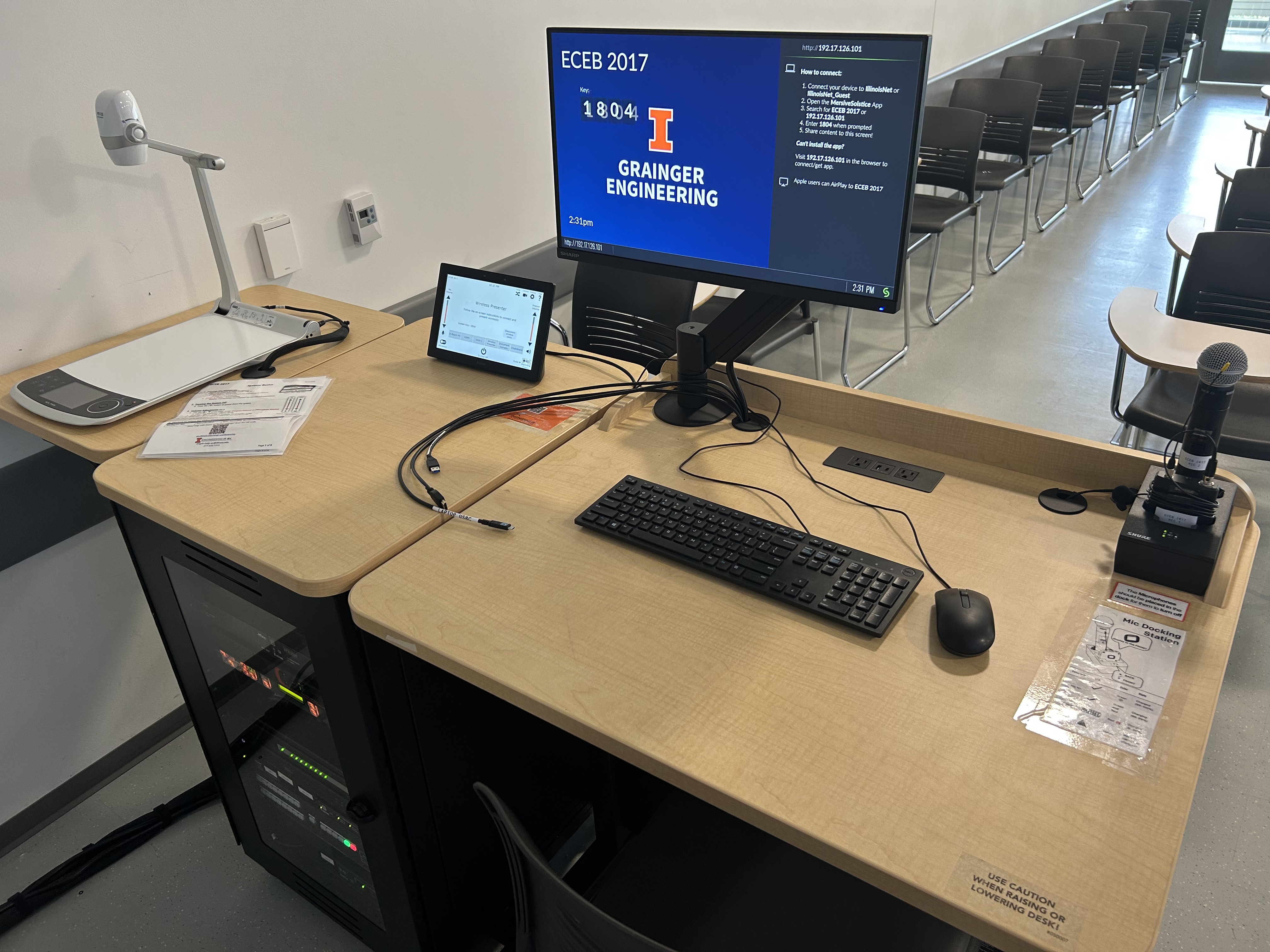

    ECEB 2017_Lectern

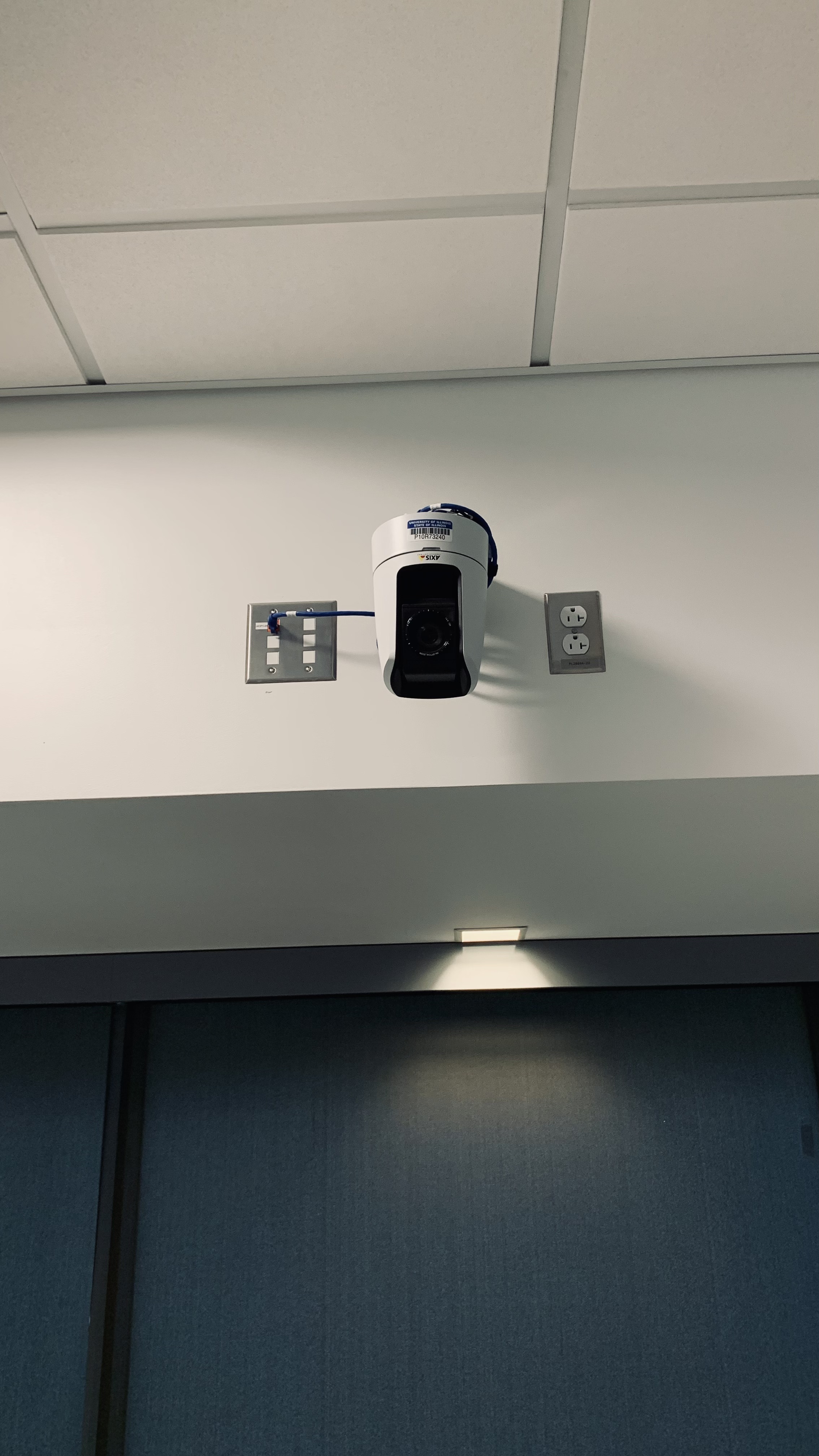

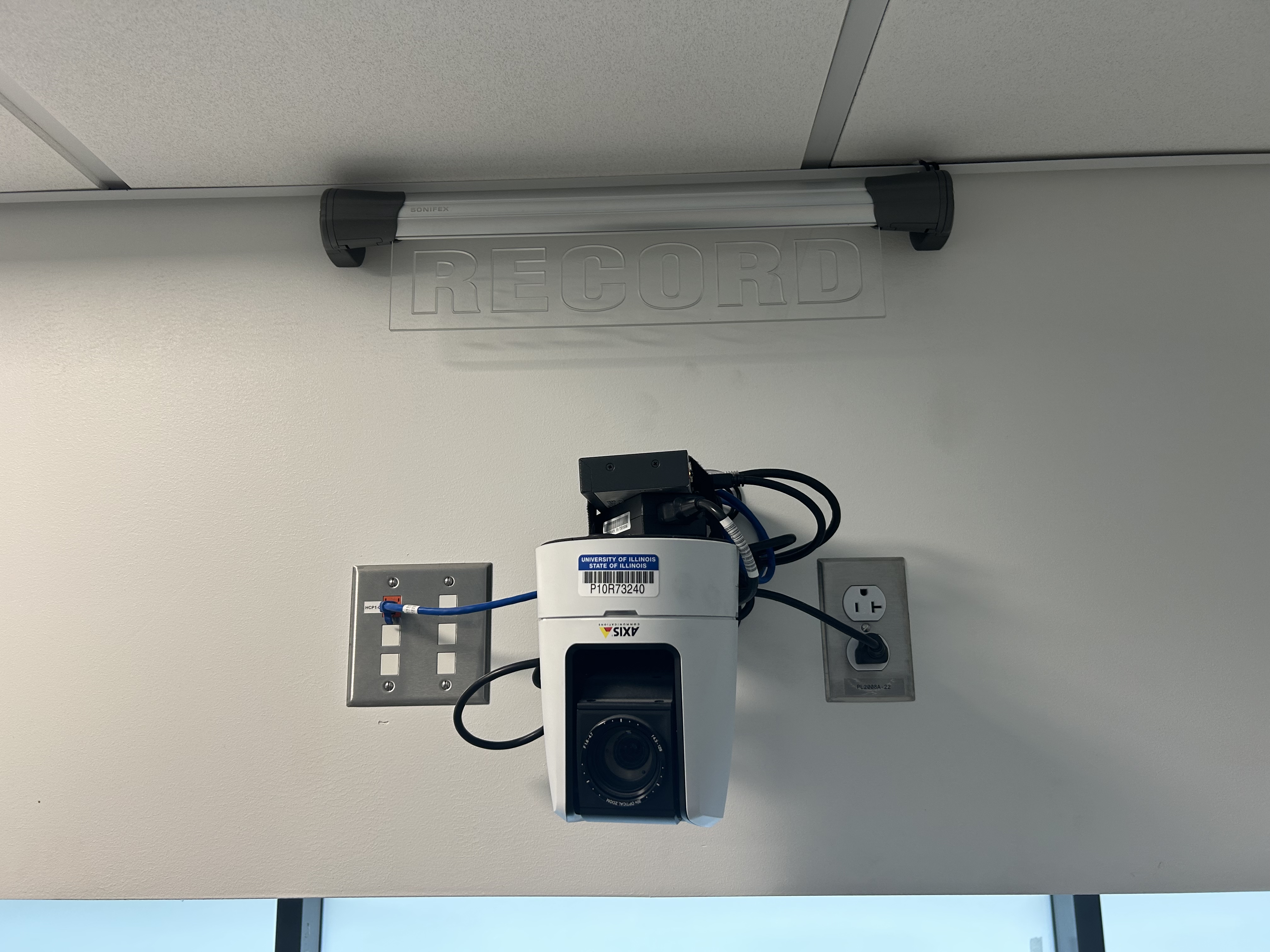

    ECEB 2017_Camera

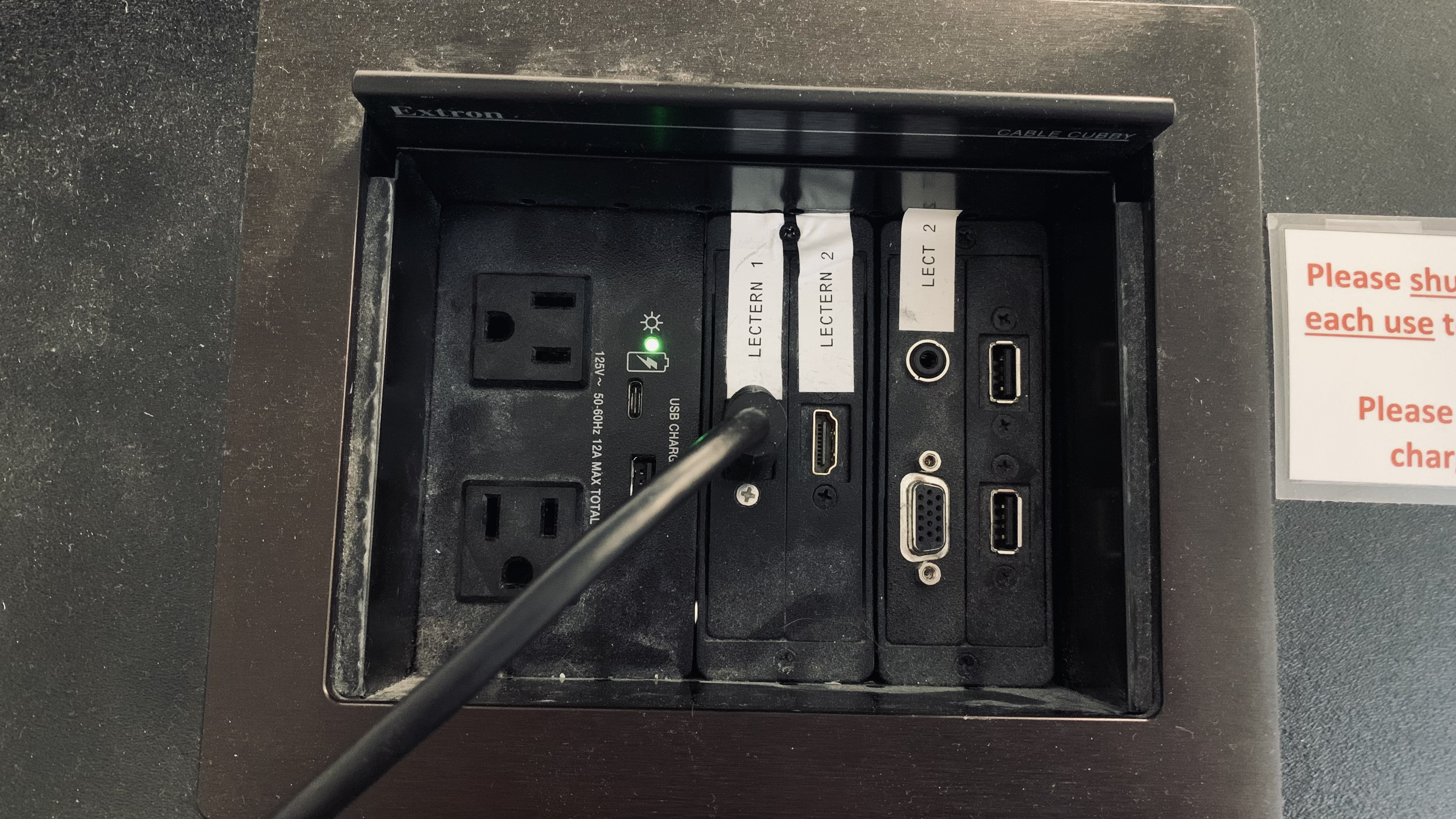

    ECEB 2017_InputPanel

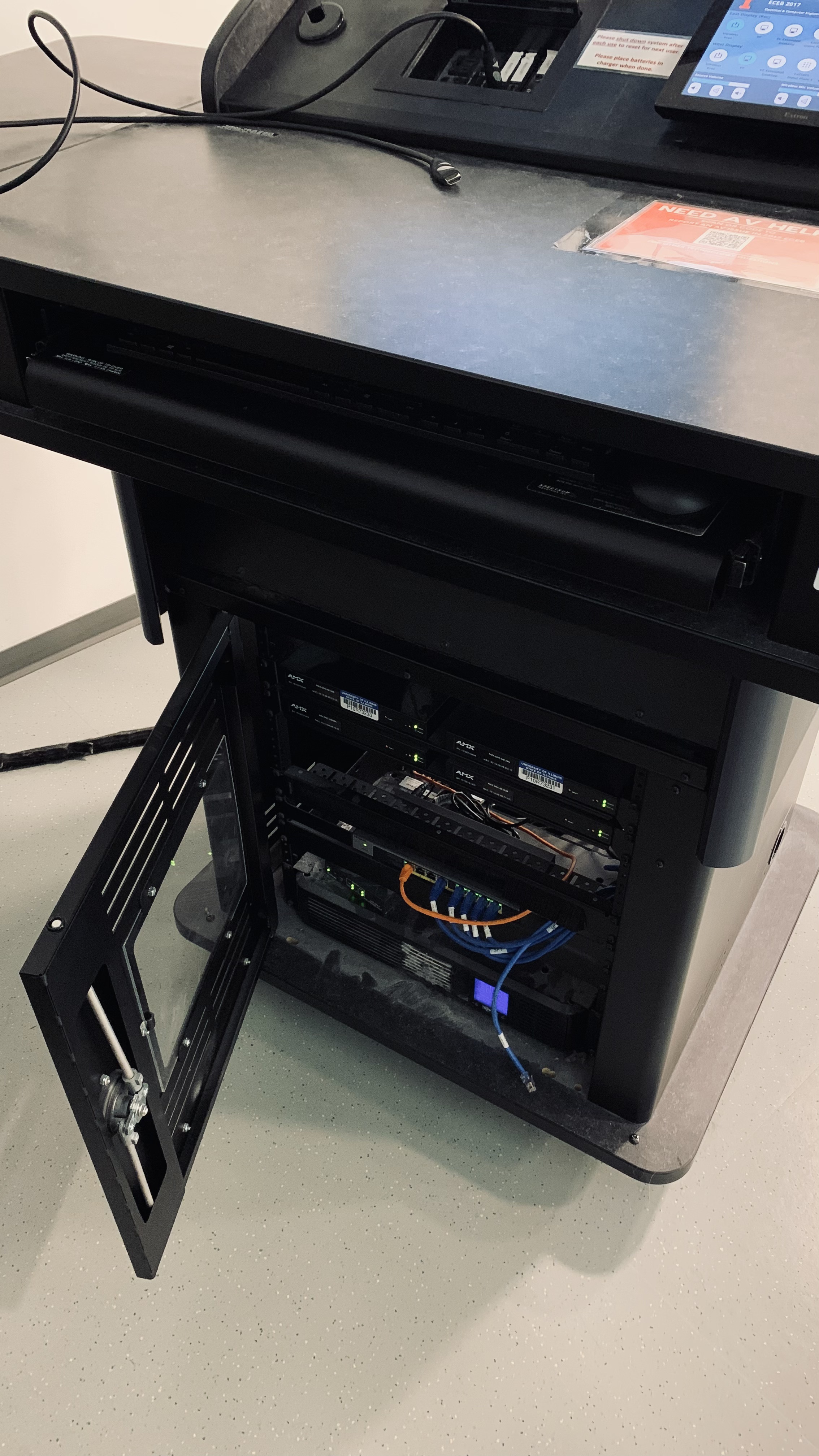

    ECEB 2017_LecternOpen

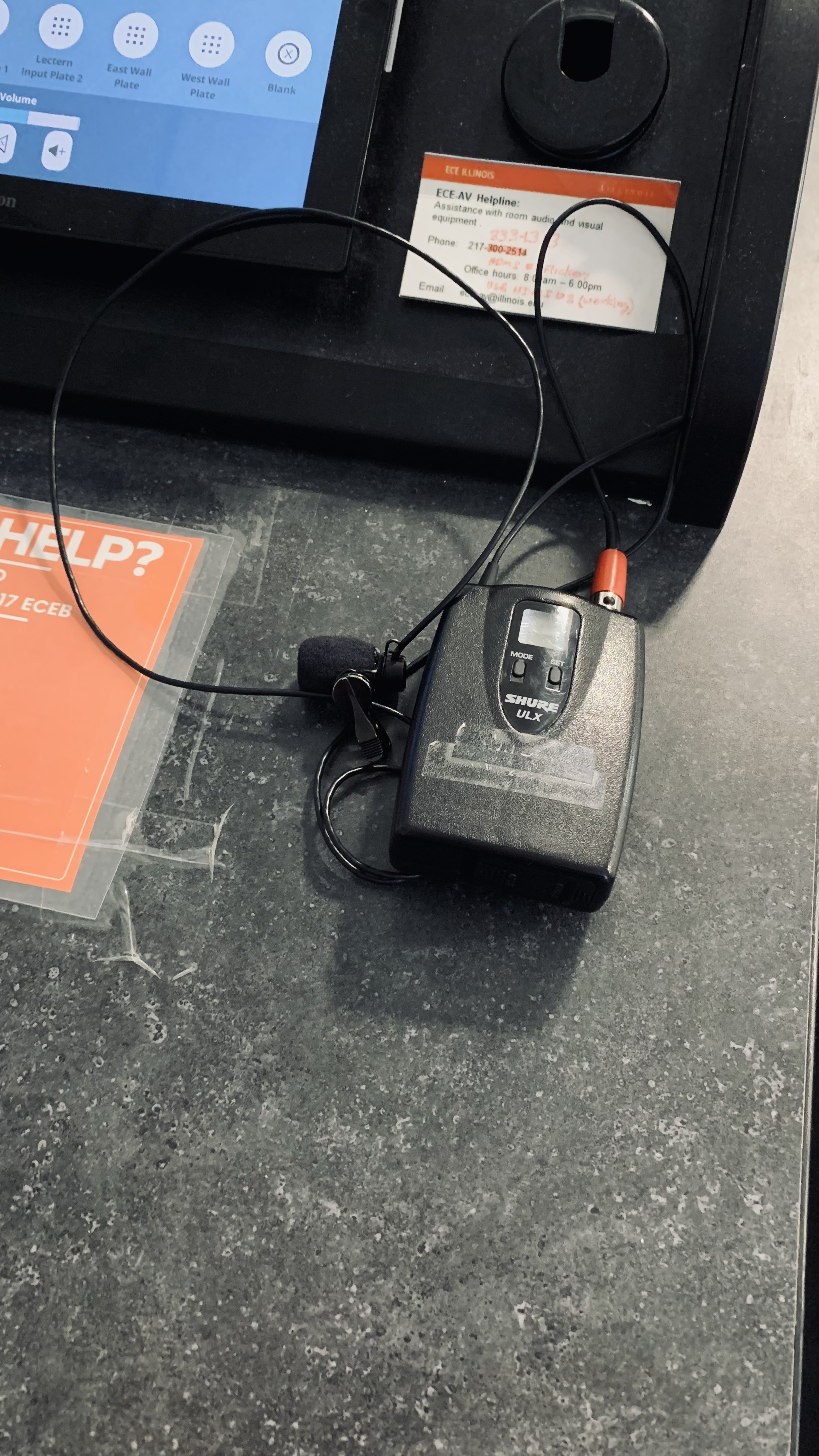

    ECEB 2017_Microphone

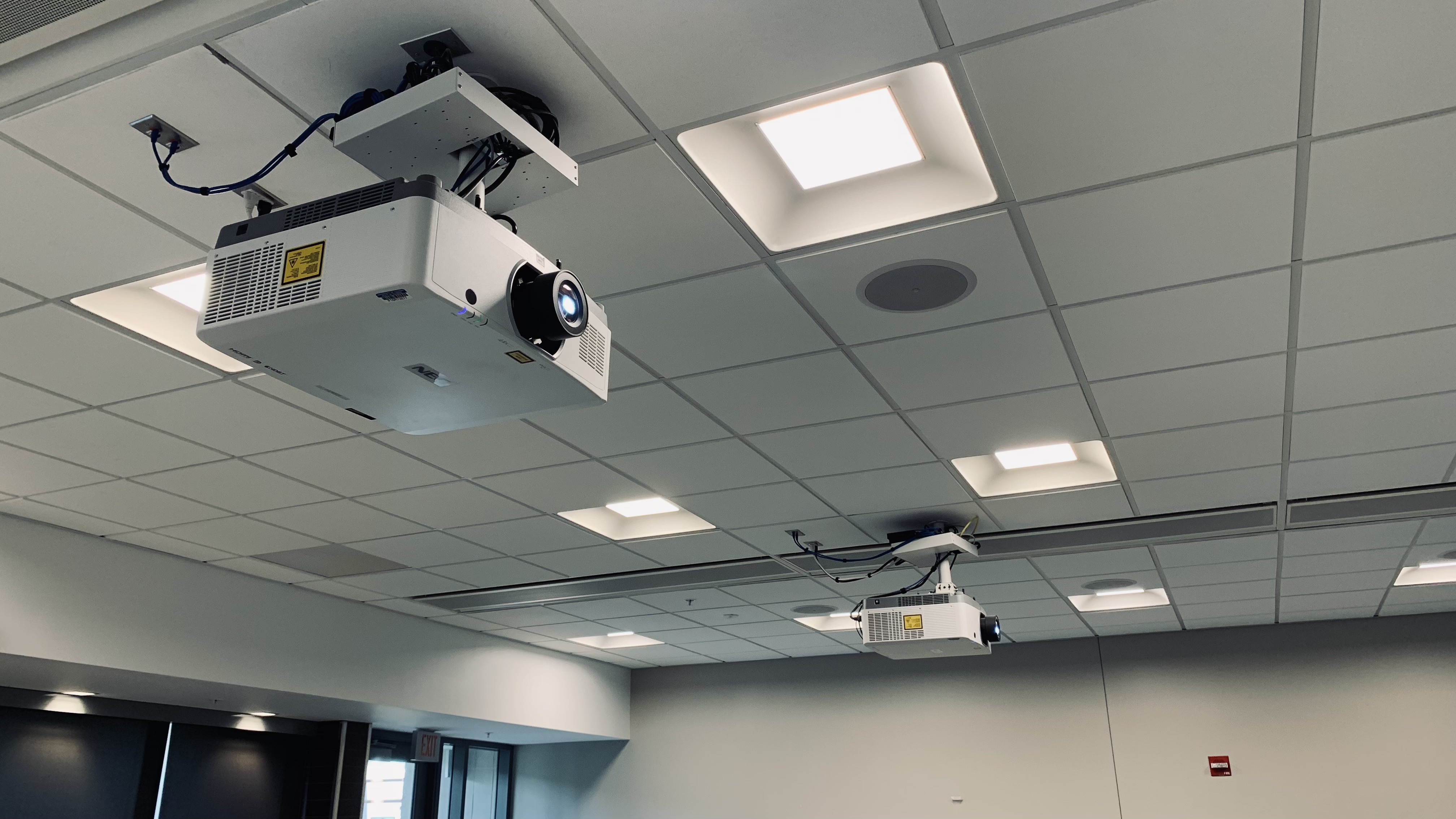

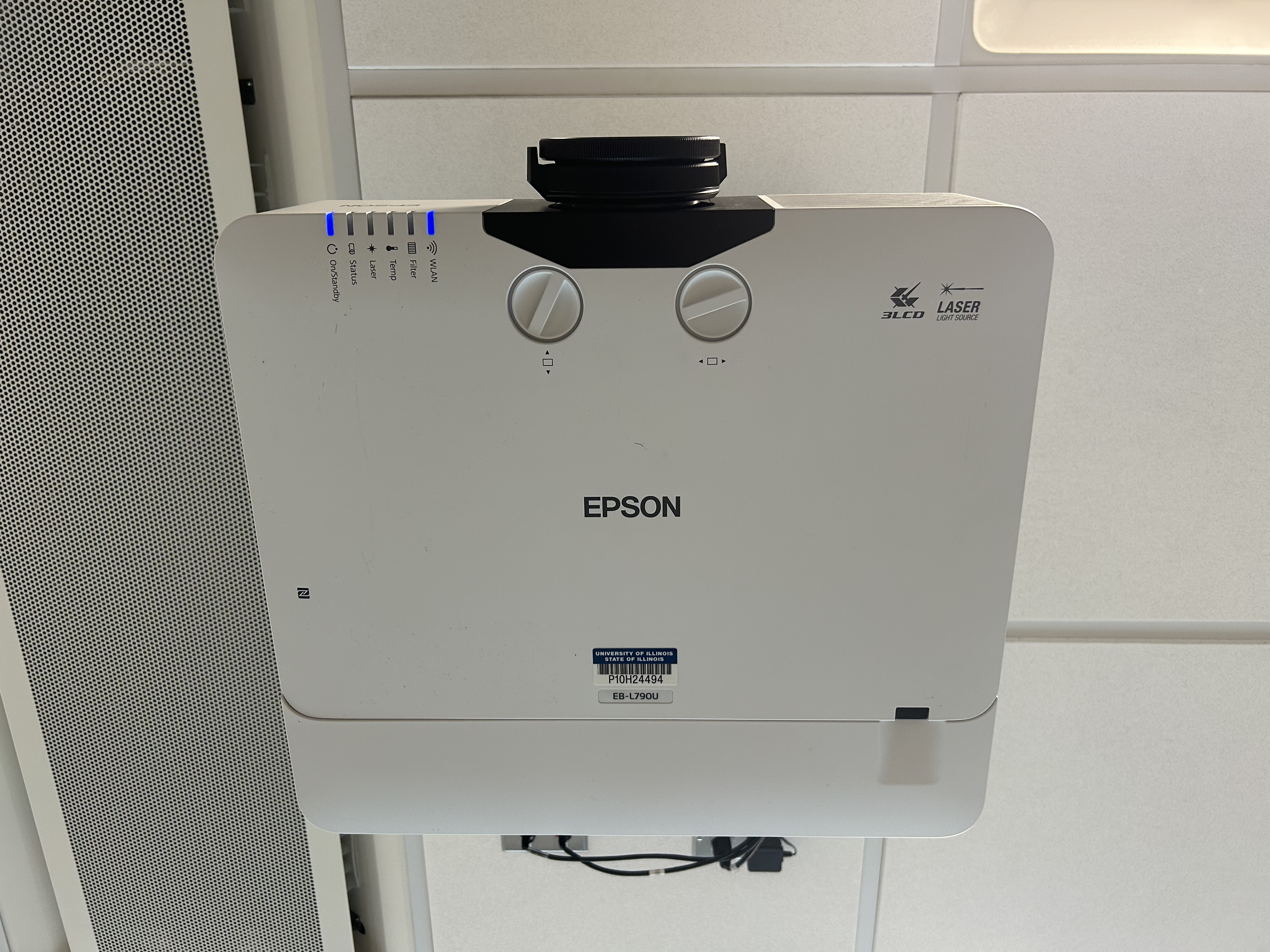

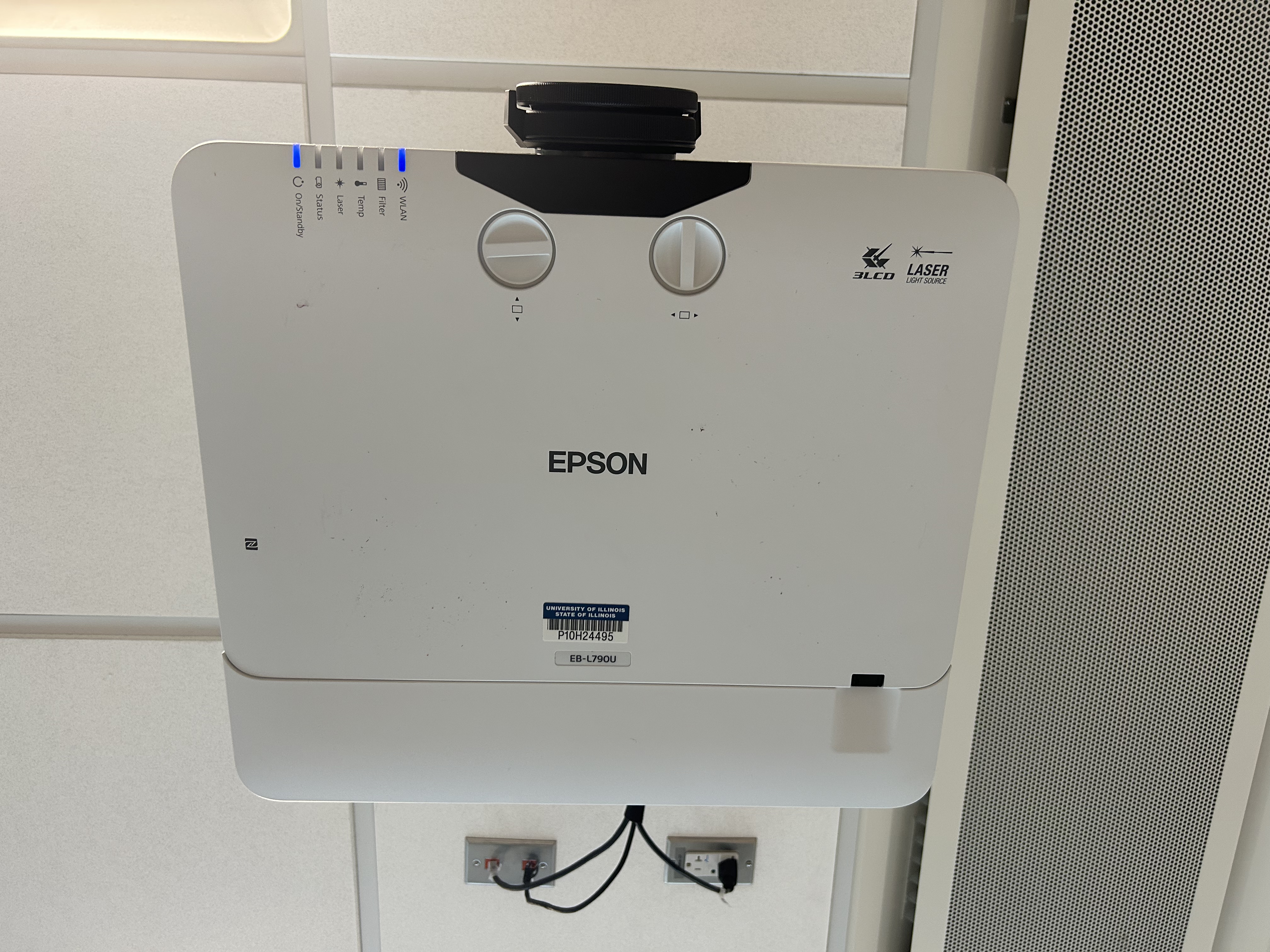

    ECEB 2017_Projectors

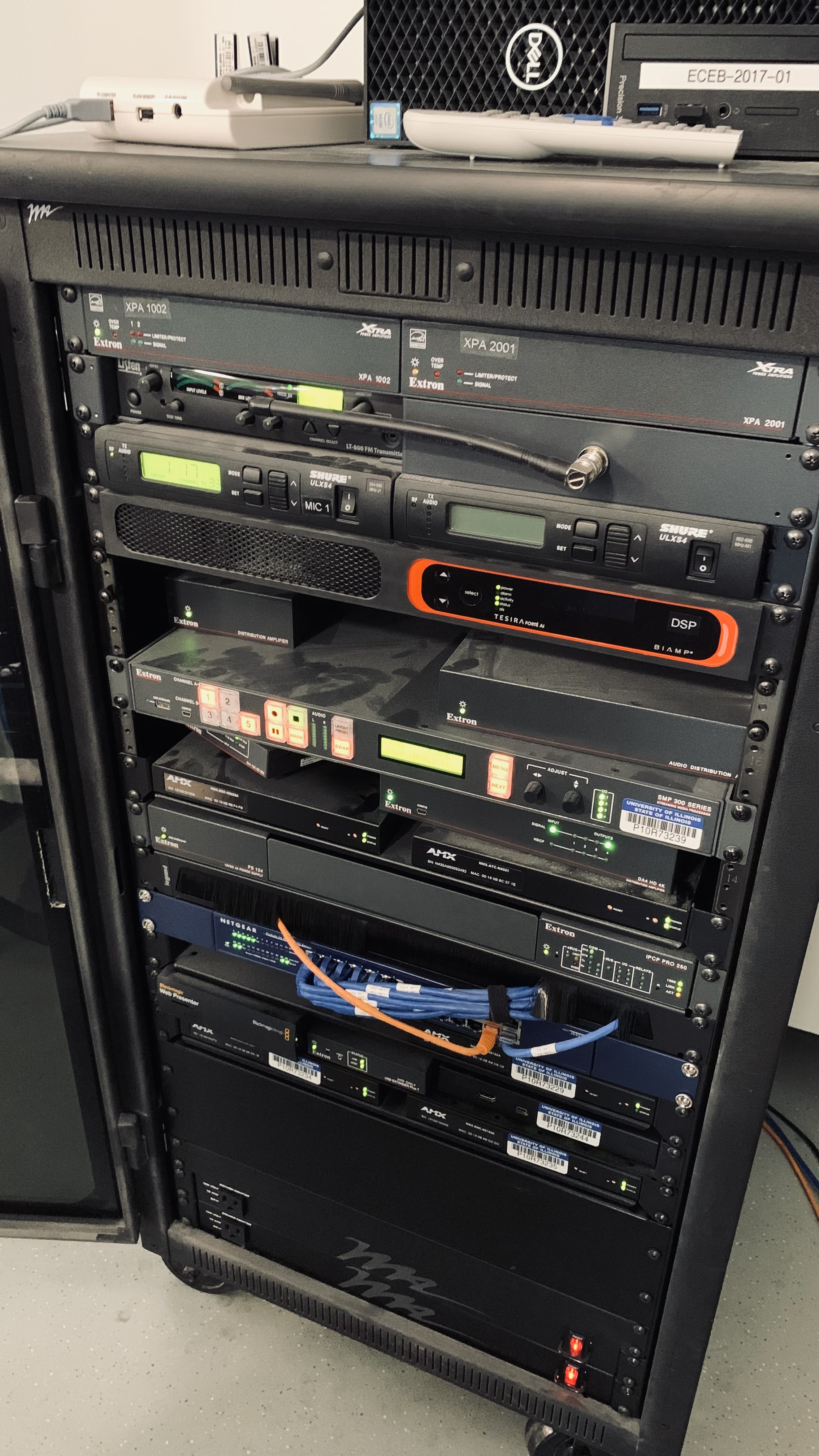

    ECEB 2017_Rack

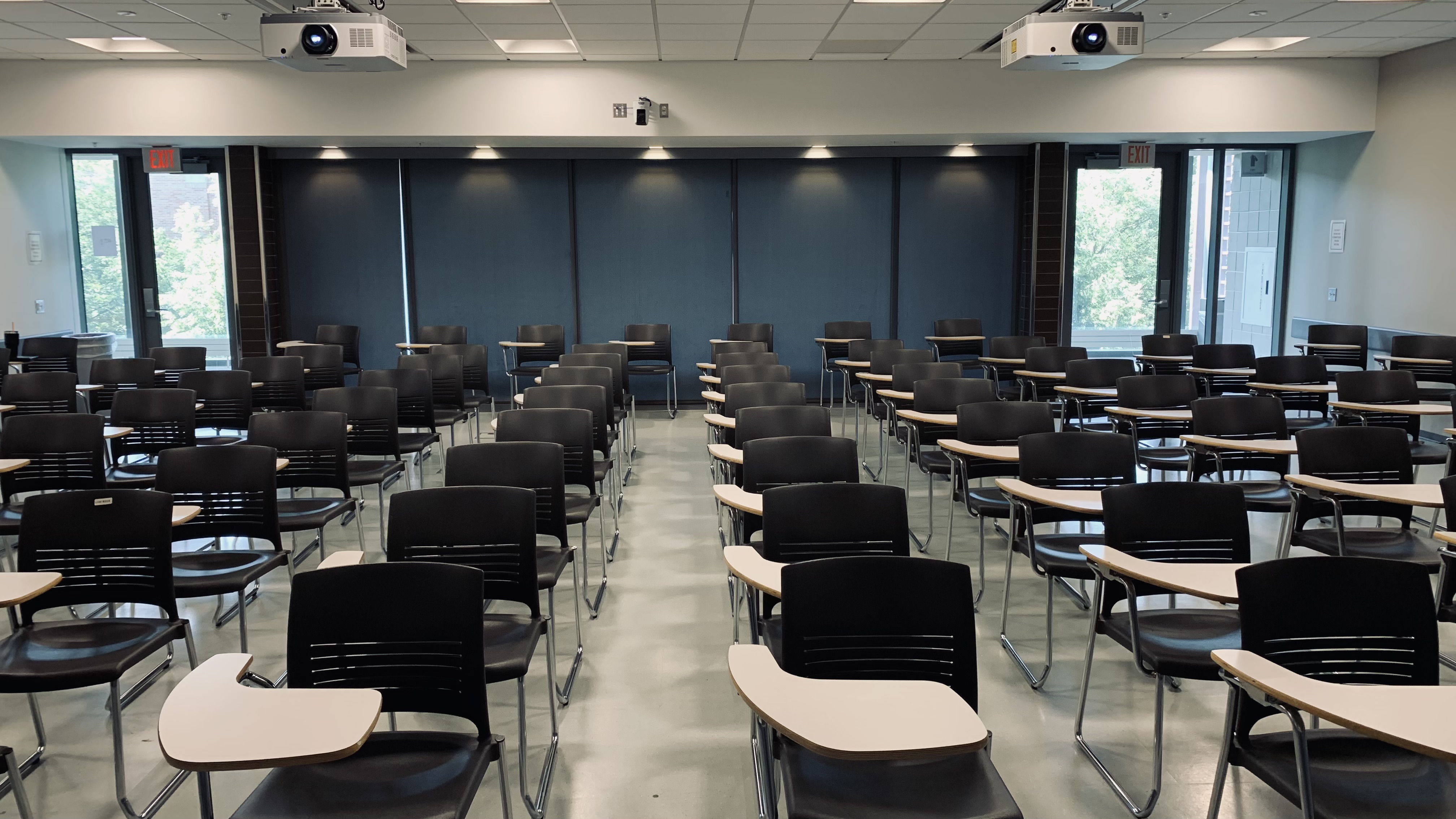

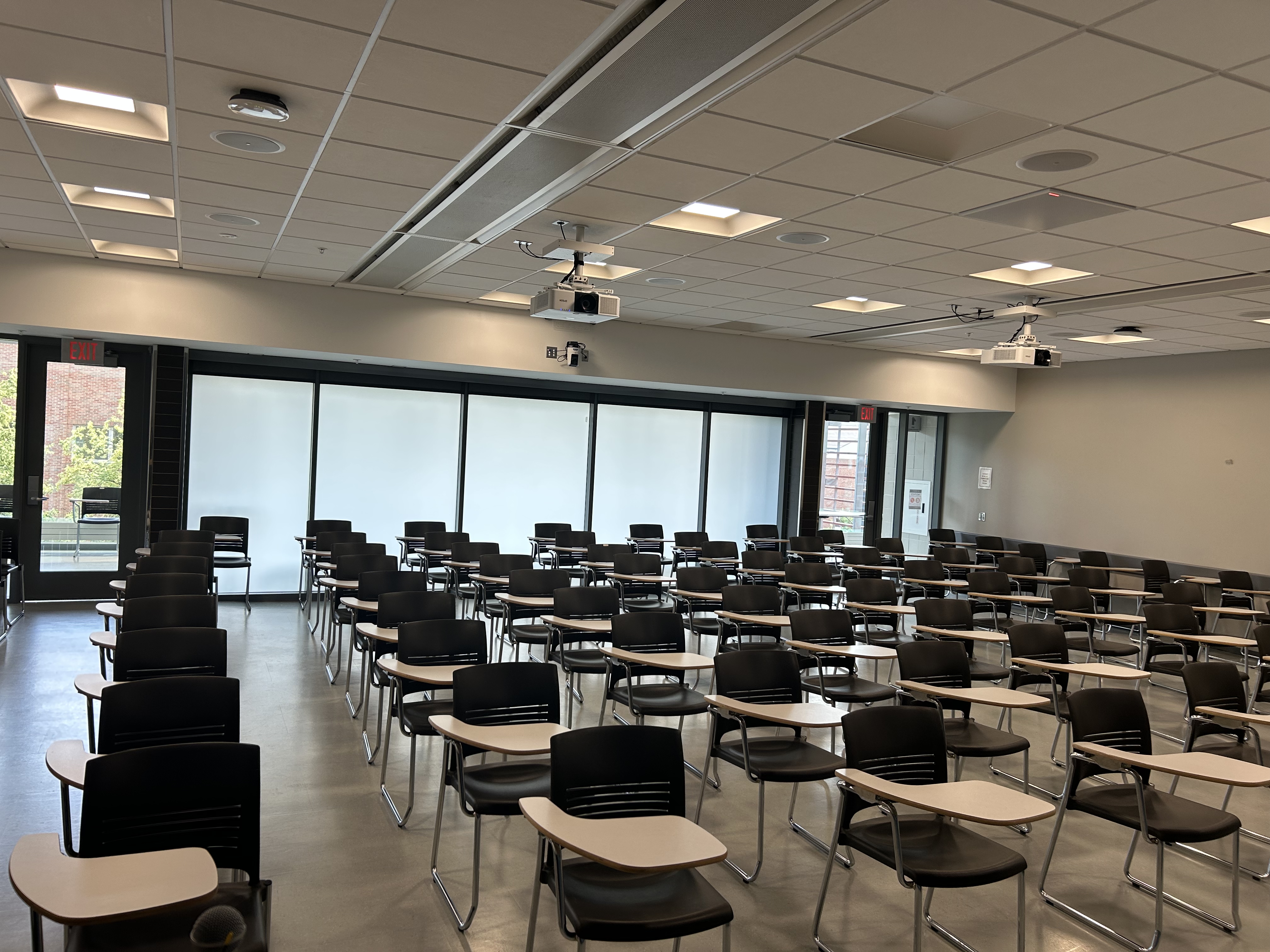

    ECEB 2017_RoomRear

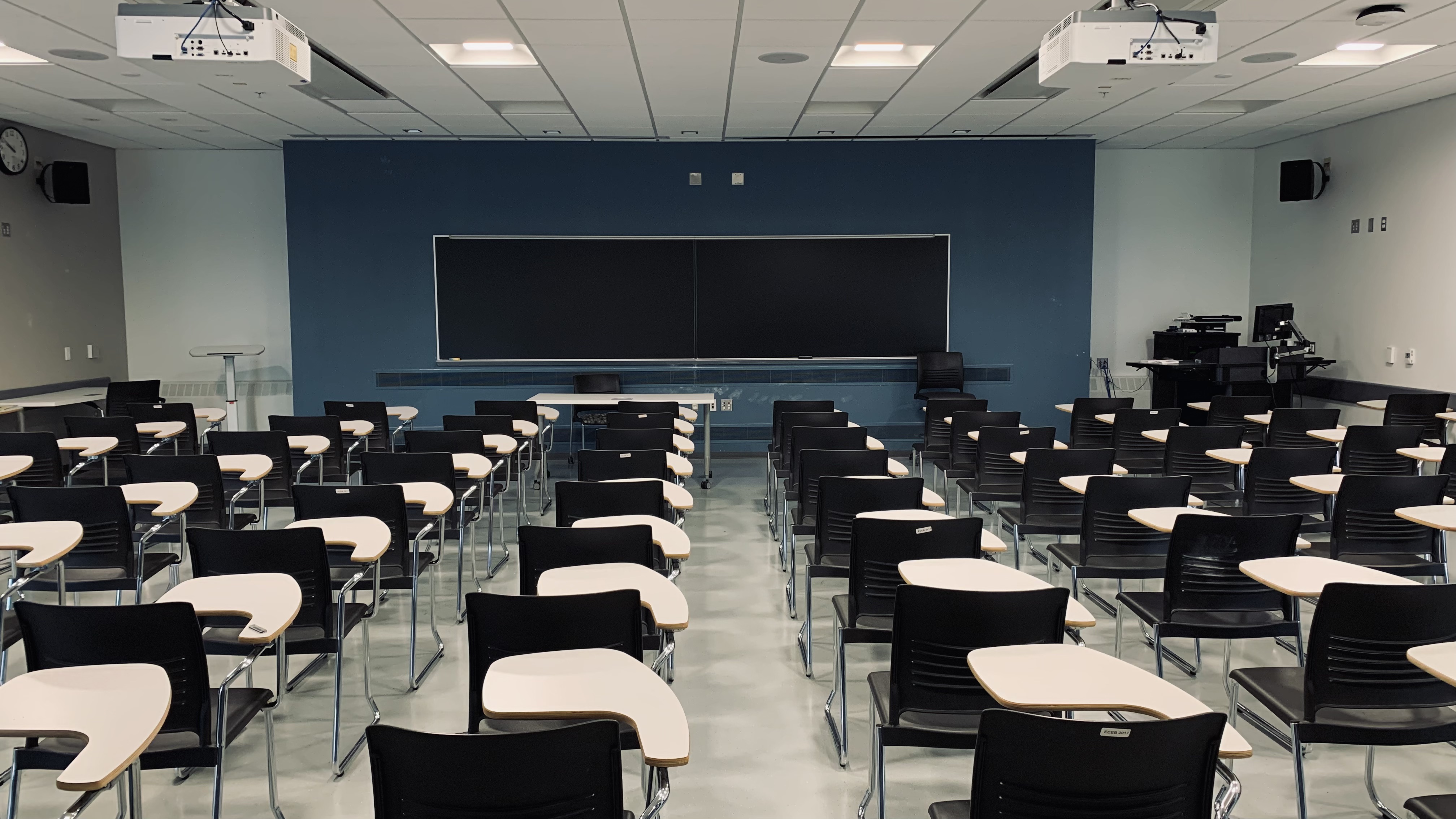

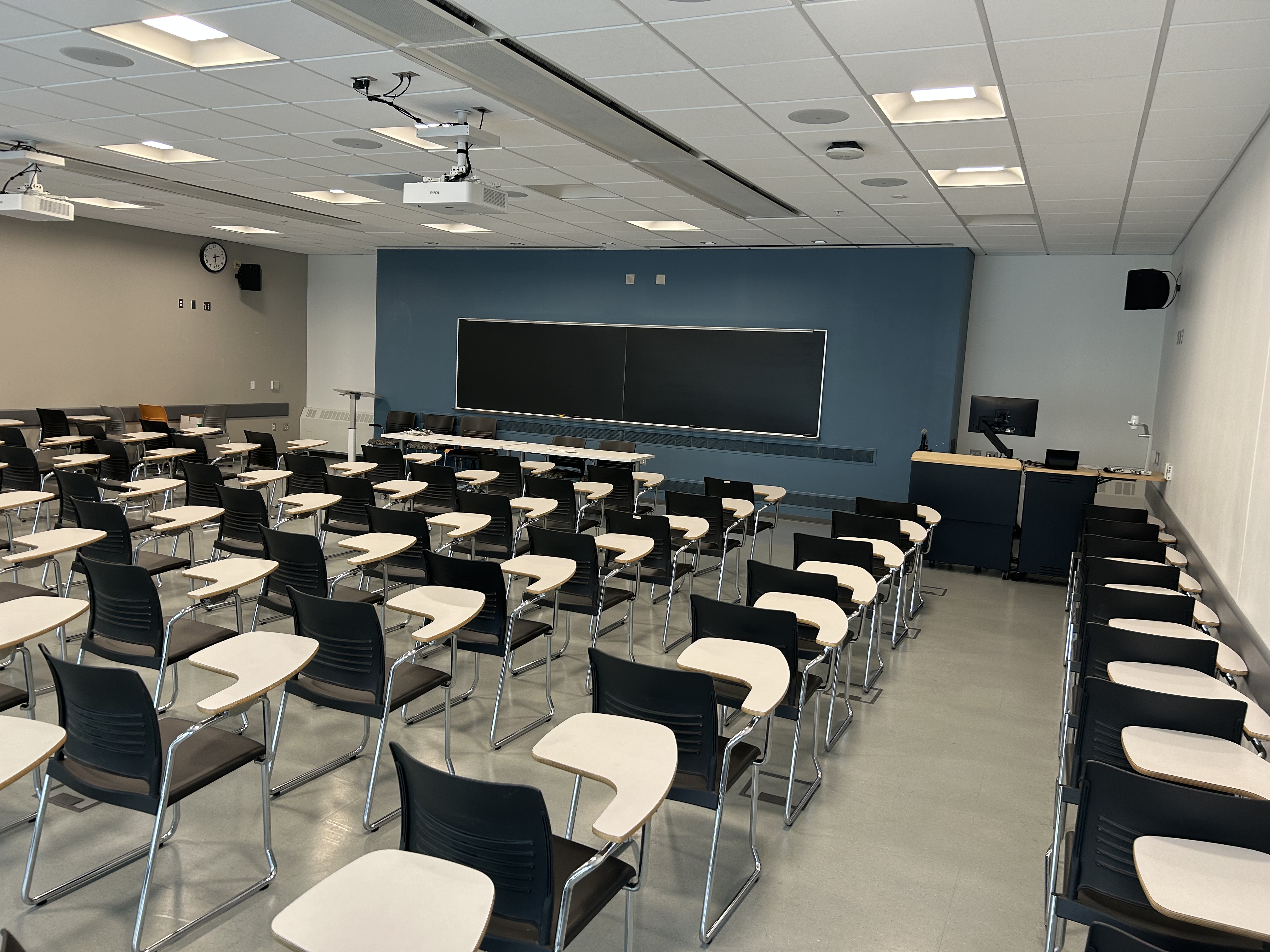

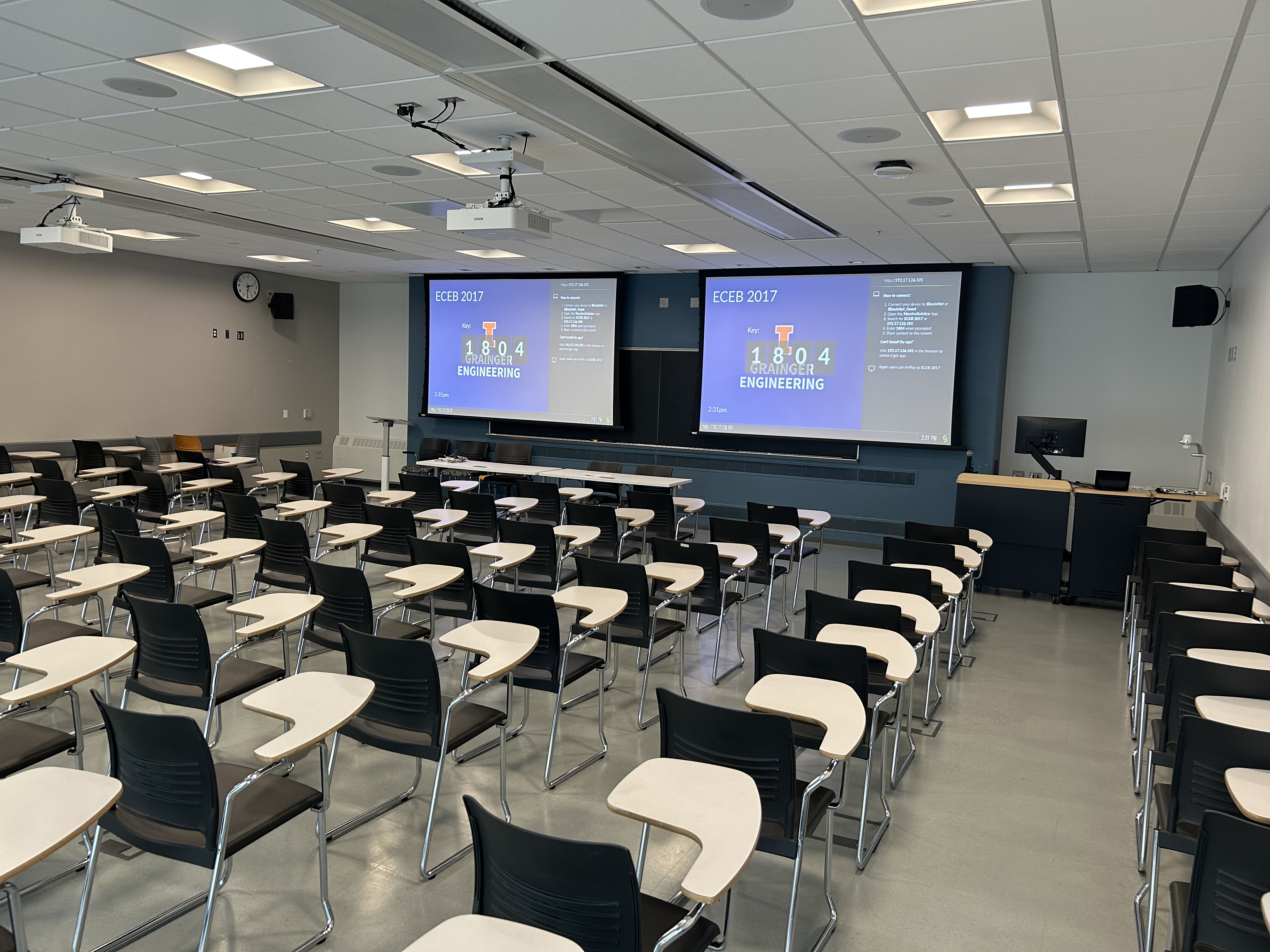

    ECEB 2017_RoomFront
